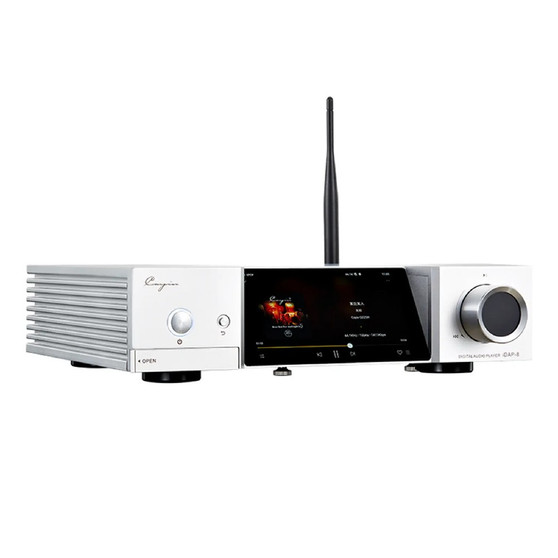

Product Description
Instant Access to Networked Music Library Support Browsing and Playback on LAN
Once connected to the NAS, you can read all the music files on the iDAP-8 conveniently, and play your favorite tunes on the NAS without downloading to the digital streamer.
Expandable Storage for Jumbo Music Library
- Dedicated HDD/SSD Compartment
- SATA3.0 data interface supports up to 4TB 2.5-inch hard disk or SSD,
- Facilitates local music library that can be reliably playback via different music player applications.
**The displayed hard drive is for illustrative purposes only and needs to be purchased separately
Your Choice of Storage, Your Choice of Playback
Supports playback of music files stored internally, on SD cards, USB disks, hard disks, and card readers
Enjoy Music From All Over the Internet
Built on a powerful operating system, the iDAP-8 is meticulously crafted. Popular music apps are pre-installed and users can download and install more apps, it is user-friendly from the moment you turn it on and you can enjoy an intuitive music experience.
Accurate Conversion: The Key to Musicality in Digital Audio
Two specialized Accusilicon audio-grade active femtosecond oscillators were users. 45.1584MHz: DSD and multiplies of 44.1kHz 49.152MHz: multiplies of 48kHz
Ultra-low phase noise at 200fS (@100MHz) minimizes jitter, digital artifact, and signal loss, this will enhance conversion accuracy and provide a better audio experience.
In-house Developed High-quality Power Supply Transformer
Cayin insists on designing and building our transformers because they play a vital role in audio equipment.
The 45W toroidal transformer in iDAP-8 is winded by high-purity copper enameled wire and coupled with specialized shielding packaging. We have also introduced numerous circuit protection measures in our design. These techniques will lower the magnetic interference and protect the circuit from noise interference dramatically.
Powered by Qualcomm SDM660 eight-core processor
Faster data read/write speeds, high-performance, low-latency memory pool.
Smooth and effective multitasking, manage internal storage, SD card, USB, and hard disk files simultaneously.
All-New UI Design Provides Interactive Music Experience
Equipped with a 5" FHD TFT multi-touch screen, displaying text, graphical and high-res album art sharp and clear.
Intuitive and comprehensive, all information is well organized and properly presented.
Based on ergonomic principles, the 59° tilted screen makes it easy to view and control.
Remote Control as if the World Is Your Oyster
Select your preferred control option to maneuver your local and online music library in different scenarios.
- Touch screen
- Physical buttons and menu knob
- HibyCast screen mirroring on iOS/Android devices
- HibyLink BT resource sharing on iOS/Android devices
- Universal BLE (Bluetooth Low Energy) Remote Controller
Exquisite, Compact, and Blend In

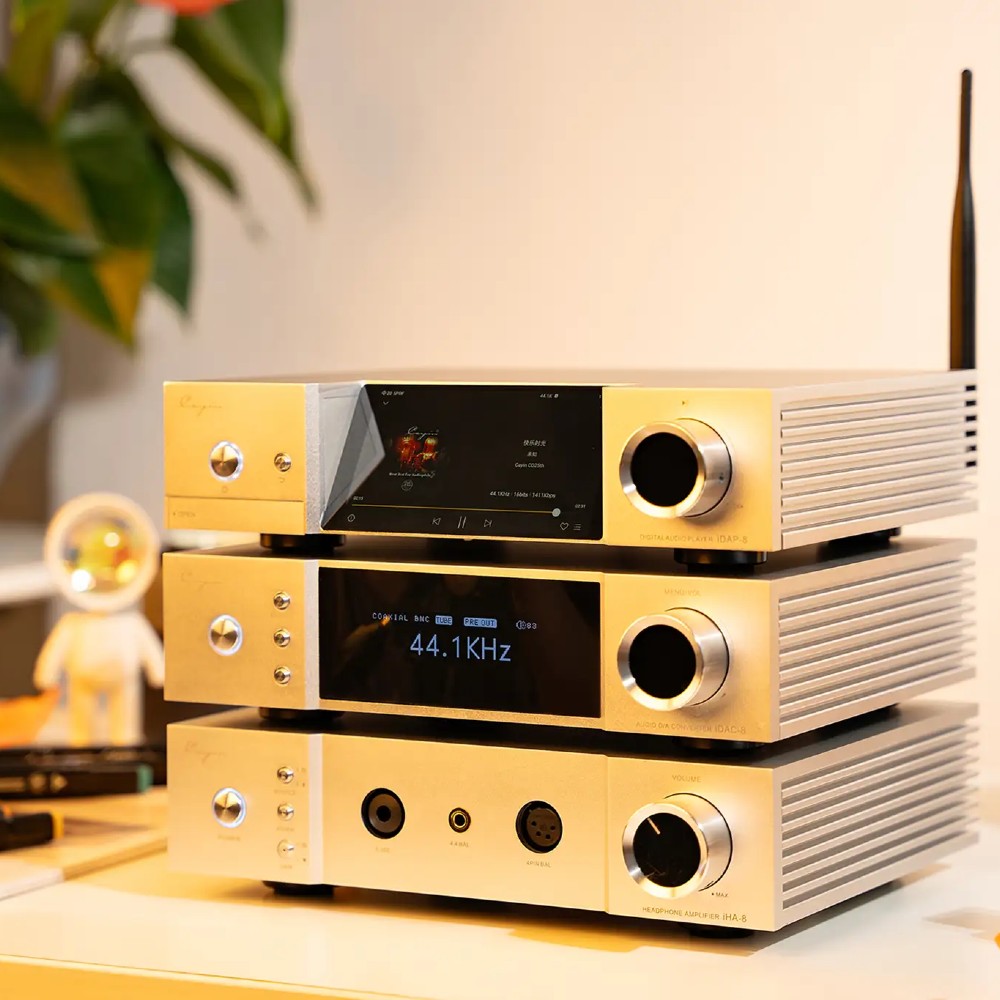

The iDAP-8 is a new member of the Cayin i-series products, it shares a unified design language with the iDAC-8 digital-analog converter and the iHA-8 headphone amplifier. Each product can be used individually or can be combined to form a set.
Featuring an L-shaped aluminum cover plate, precision mold extrusion, CNC precision machining, fine sandblasting. With an anodized surface treatment, the digital streamer has a uniform and delicate texture, making it durable over time.
The left and right side panels are designed as ridged heat sinks. The extra surface area enhance heat exchanges and improves heat dissipation capacity. The optimized operation condition allows the DAC to deliver its best performance.
Key Features
- Direct playback from NAS
- Expandable storage with 2.5" HDD (less than 4TB)
- 6GB RAM / 128gb storage
- USB, SPDIF, AES/EBU, Optical, Coaxial (RCA/BNC), AES/EBU and I2S digital outputs
- 5" 1920x1080 TFT multi touch display
- Gigabit LAN / Dual 2.4/5Ghz WiFi
- HibyCast / HibyLink support
Technical Specifications
- MCU: Snapdragon 660 2.2GHz
- Memory: 6GB LPDDR4 RAM
- System: Customized Android 9
- Storage:
- 128GB Internal
- 2.5" SATA3.0
- SD
- External USB
- Oscillator: (2x) Accusilicon Ultra-Low 20ppm phase noise Femtosecond
- File Format: DSF, DFF, SACD-ISO, FLAC, AIFF, WAV, APE, ALAC, WMA, MP3, AAC, OGG, + Opus
- Lossless: DTA bypass Android SRC
- Digital Interface: IS, USB, AES/EBU, Optical, COAX (RCA + BNC)
- LAN: IEEE 802.3/IEEE 802.3u, Support 1000M/100M/10M
- Bluetooth: BTv5.0 + BR/EDR + BLE
- Wi-Fi: 2.4GHz / 5GHz
- Display: 5" FHD TFT multi-point touch screen
- Power Supply: 45W Toroidal Transformer
- Weight: 9.7lbs
- Dimensions: 270mm x 215mm x 70mm
What's Included
- Cayin iDAP-8 Desktop Streamer
- Power cord
- USB cable
- BT/WiFi Antenna
- (2x) Replacement fuse
- User Manual
- Warranty card
