Product Description
R202

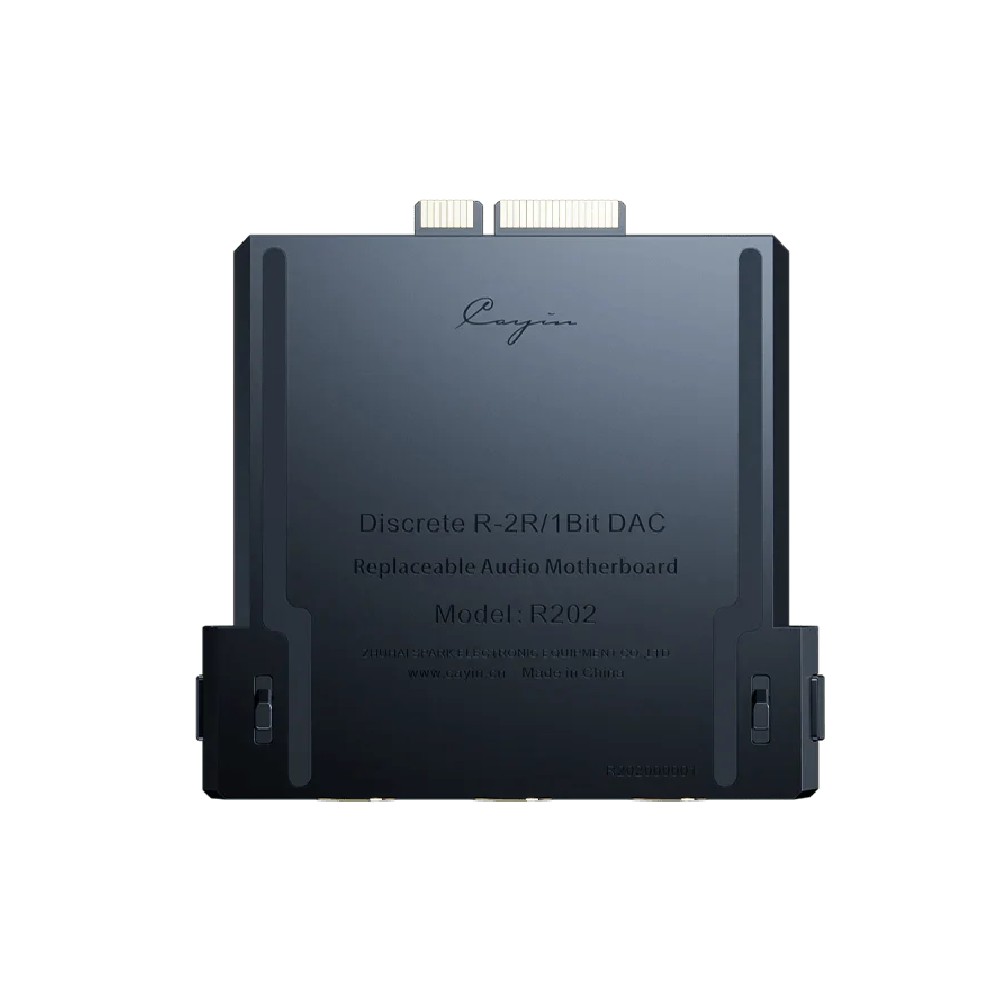

The Cayin R202 motherboard is a high-performance audio module built around a fully discrete, fully balanced dual-DAC architecture. It features both a 24-bit R-2R ladder DAC and a discrete 1-bit DAC, each using ultra-precise 0.1% thin-film resistors for native PCM and DSD decoding. A dual digital audio processor supports up to PCM 768kHz and DSD512, with smart triple decoding modes—automatically selecting the best DAC architecture for the input format.
The motherboard also includes a quad-channel, fully balanced headphone amplifier built from high-grade op-amps and INA1620 drivers, delivering dynamic, transparent sound. Power is delivered through a matrix-structured clean supply with ultra-low-noise LDO regulators, ensuring a quiet, stable signal path.
Technical Specifications
- R202 Motherboard
- DAC:
- Fully discrete 24-bit balanced R-2R DAC built with 192 x 0.1% ultra-precision thin-film resistors (48 x 4 configuration)
- Fully discrete 1-bit balanced DAC built with 128 x 0.1% ultra-precision thin-film resistors (32 x 4 configuration)
- OP-AMP IC: (4x) OPA1612 + (2x) OPA1662
- Headphone Amp Circuit: (4x) INA1620 Dual-channel op-amps
- Output Interface: SE 3.5mm PO + BAL 4.4mm PO
- DAC:
