Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument Microphone

Audio-Technica
S$499.00
S$454.09
Current Stock:
0
SKU:
AE5100
Type:
Wired Microphone

The Audio-Technica AE5100 is a large diaphragm condenser microphone designed for capturing instruments. The sensitivity and frequency response make it suitable for overheads, percussion and acoustic instruments such as guitar and strings. The large diaphragm element delivers natural, transparent signal reproduction and withstands high transients without distortion and noise. The sleek low-profile design allows flexible microphone placement options. A high pass filter switch eliminates noise below 80Hz and a 10dB provides additional headroom when capturing excessively loud signal sources. The AE5100 is powered via external 11V to 52V phantom power source.

High SPL Response
The AE-3000 excels in reproducing signals with high SPL response. Guitar cabinets, drums and percussion are all accurately reproduced without noise and distortion.

Cardioid Polar Pattern
The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the microphone.

High Pass Filter
A high pass filter switch eliminates low frequency noise and rumble below 80Hz.

10dB Pad
A 10dB pad switch increases headroom when capturing excessively loud signal sources.

Low-Profile Design
The sleek low-profile design allows flexible microphone placement options.

Key Features
  • Large-diaphragm capsule delivers accurate and natural response
  • Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Robust design for enduring dependability on the road

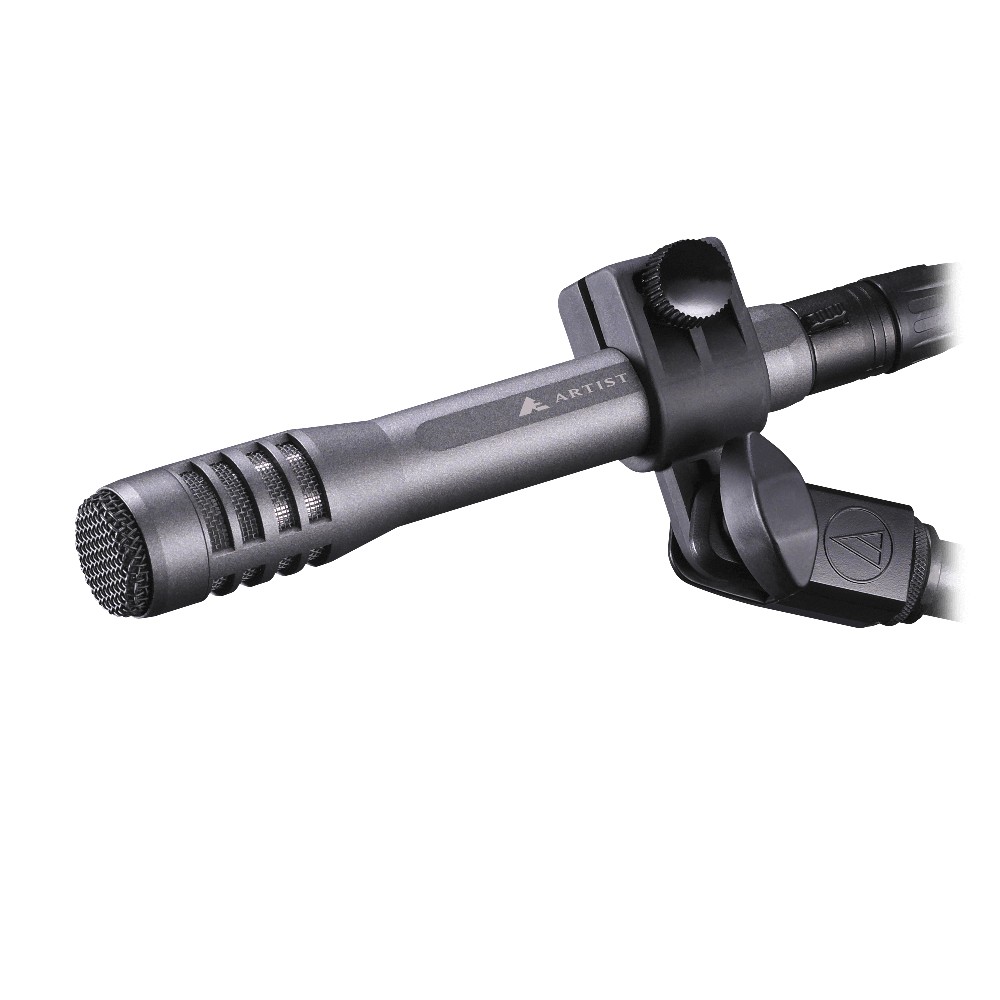

  • Includes isolation clamp for shock protection, secure mounting and easy positioning
  • Integral 80 Hz HPF switch and 10 dB pad

Technical Specifications

Microphones
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 20-20,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity -36 dB (15.8 mV) re 1V at 1 Pa
Maximum Input Sound Level 148 dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL with 10 dB pad (nominal)
Noise 11 dB SPL
Dynamic Range 137 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 83 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 3.2 mA typical
Switches High-pass filter;
10 dB pad (nominal)
Weight 5.0 oz (143 g)
Dimensions 5.85" (148.5 mm) long,
1.02" (26.0 mm) maximum diameter
Output Connector Integral 3-pin XLRM-type
Audio-Technica Case Style S4

What's Included

  • Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument Microphone

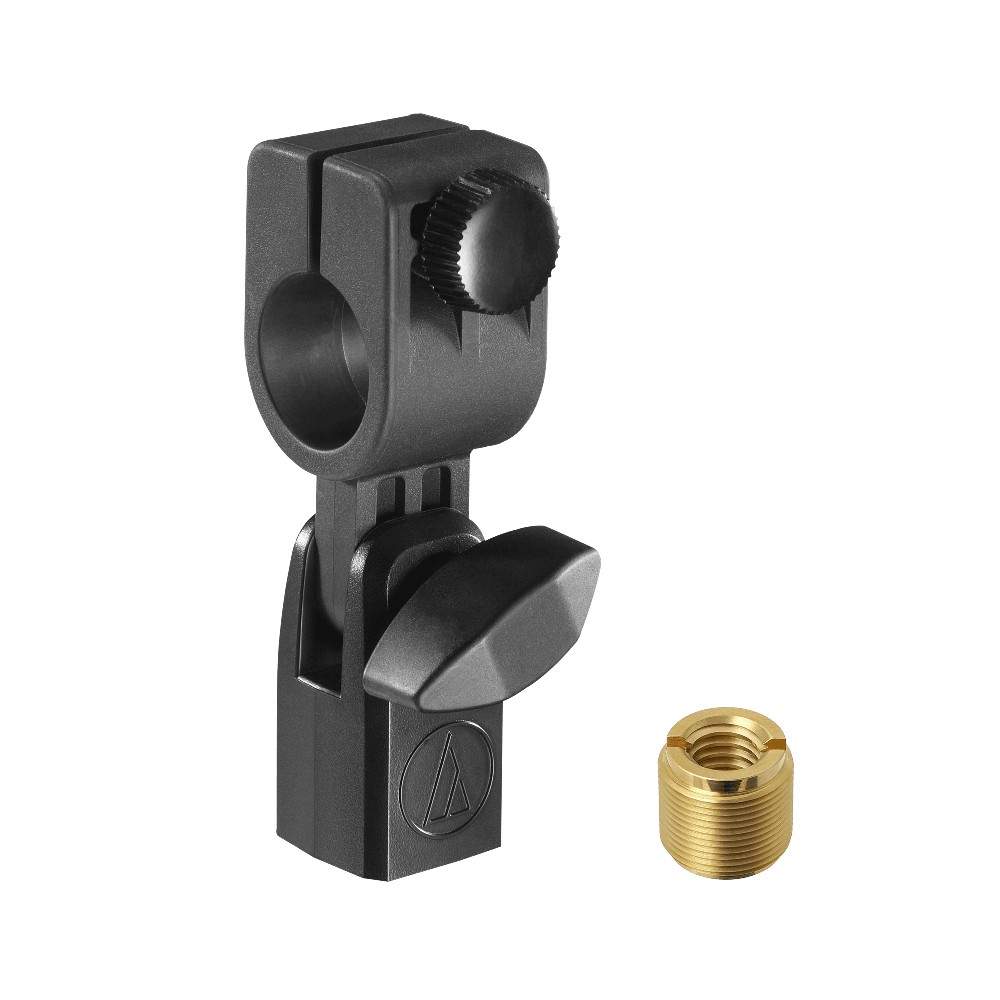

  • AT8471 Isolation Clamp
  • 3/8"-16 Threaded Adapter
  • AT8136 Foam Windscreen

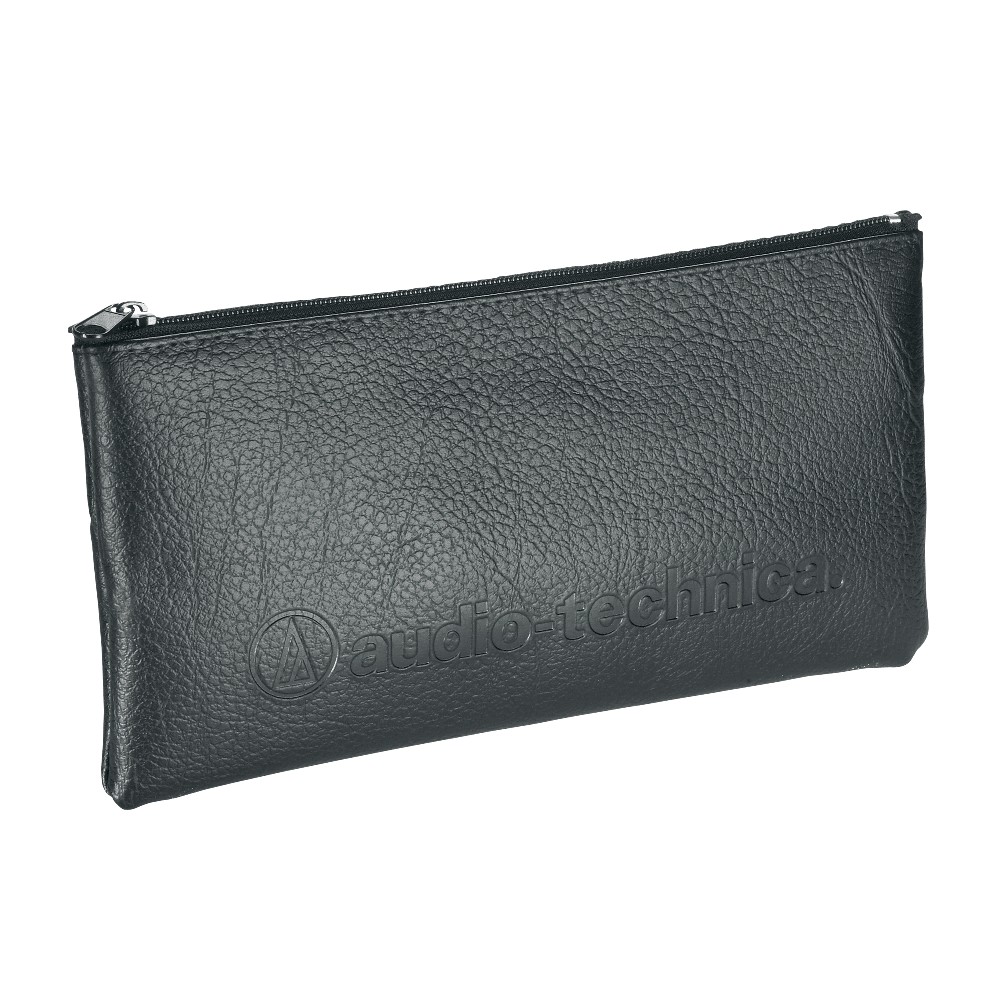

  • Protective Pouch
