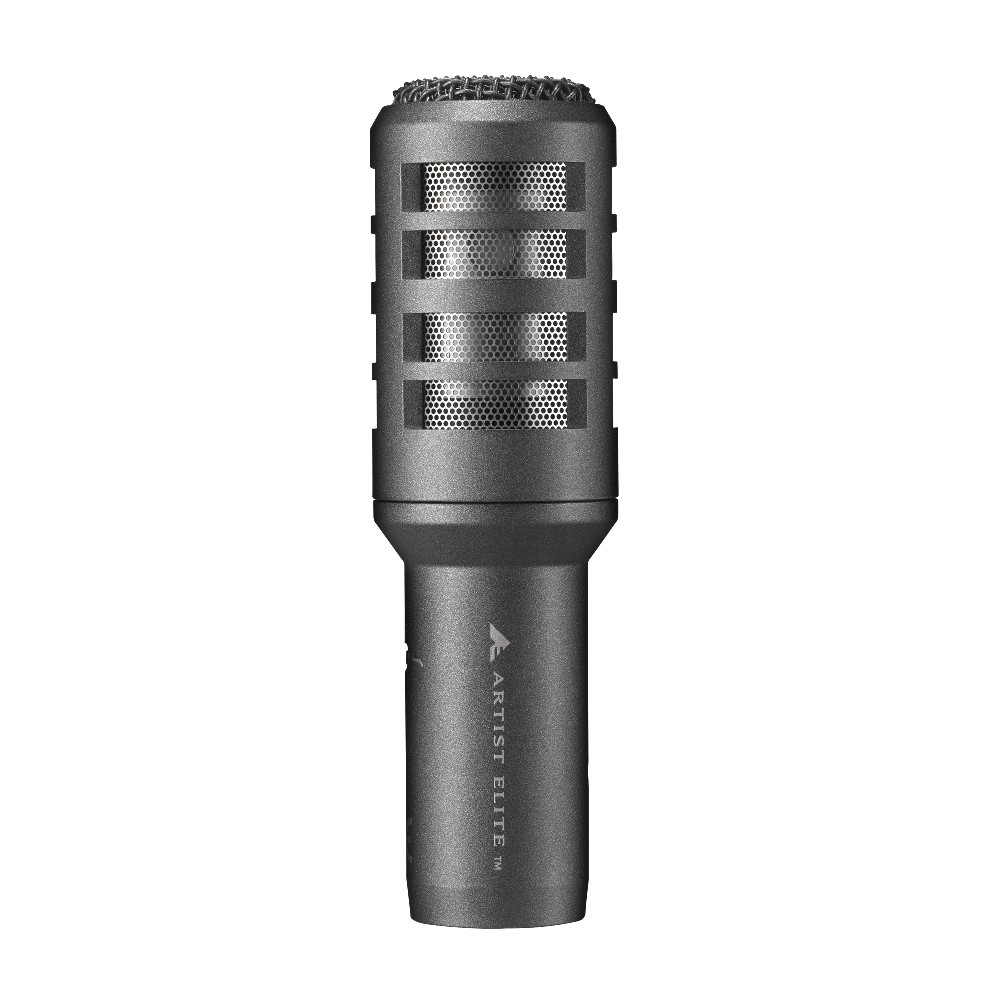

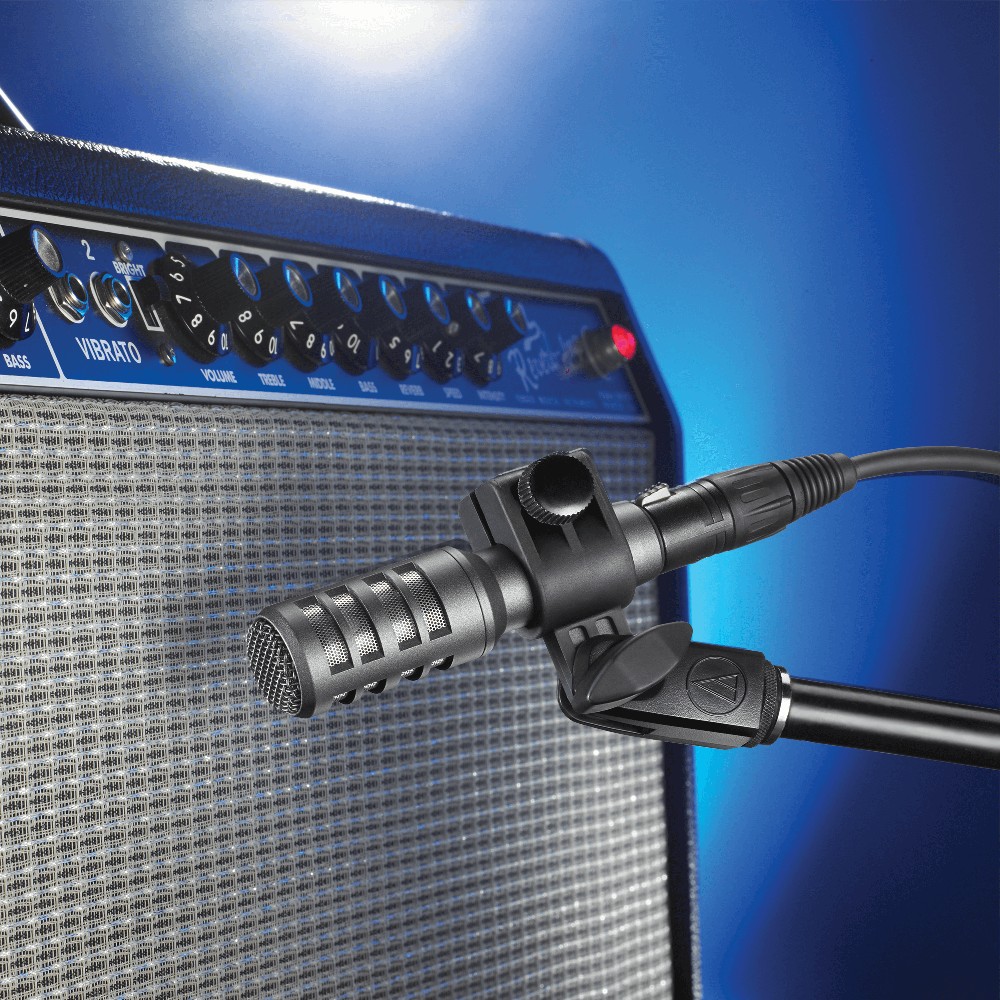

The Audio-Technica AE2300 is a cardioid instrument microphone that features a proprietary double-dome diaphragm construction, giving it high-frequency and transient response that exceeds typical dynamic microphones. With a rugged, low-profile design and the ability to handle high SPLs, the AE2300 is a versatile performer, able to accurately capture sound from guitar amps, brass and woodwinds, and drums and percussion instruments with equal clarity and precision.
The double-dome diaphragm construction allows the AE2300 to maintain directionality across the entire frequency range, while introducing only the slightest off-axis coloration (frequency response is nearly identical at 0, 90 and 180°) for phase cohesion in multiple-mic setups. The microphone is also equipped with a switchable low-pass filter that cuts out harsh, high-frequency noise, such as hiss from a guitar amp or hi-hat bleed into the snare, without negatively affecting the overall tone of an instrument. This mic is an especially useful tool in live settings to get a clear, focused sound.
- Double-Dome Diaphragm Design
- Use on Guitar Amps, Horns, Drums & More
- Cardioid Polar Pattern
- Handles High SPL
- Rugged, Brass-Metal Design
- Minimal Off-Axis Coloration

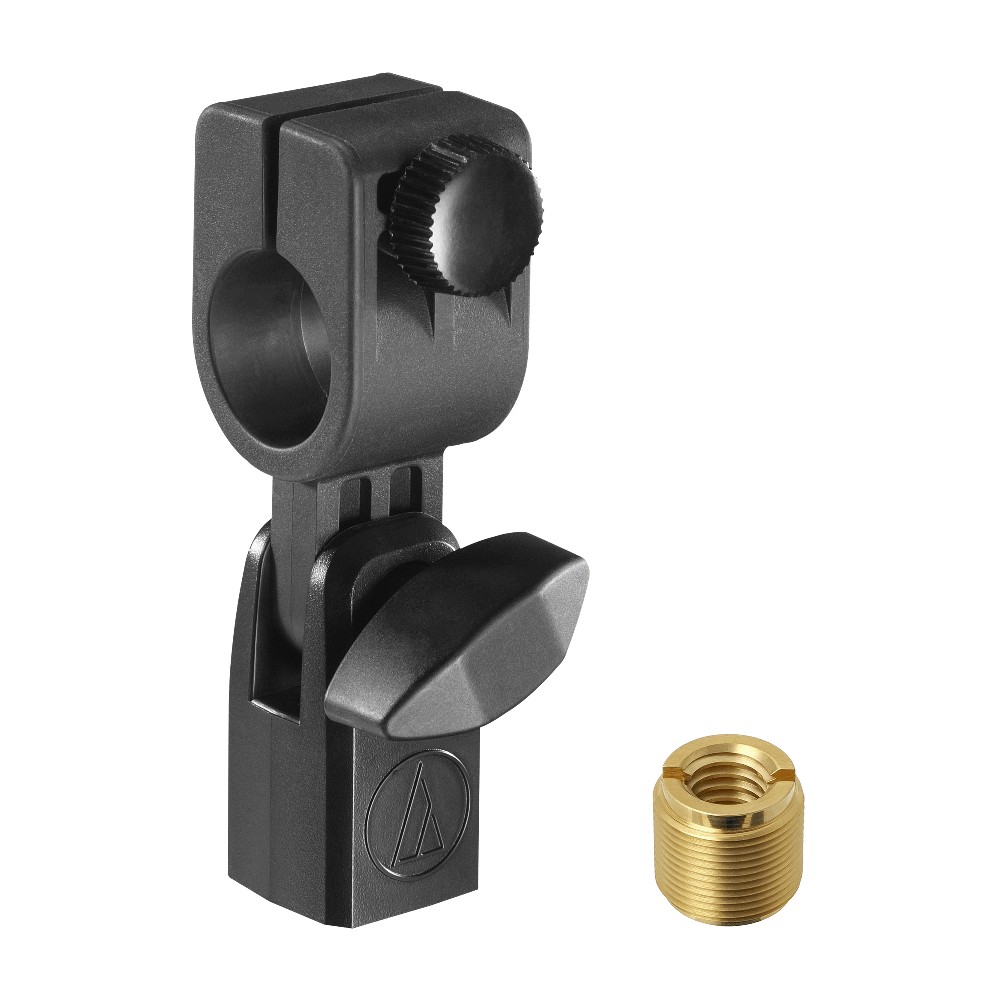

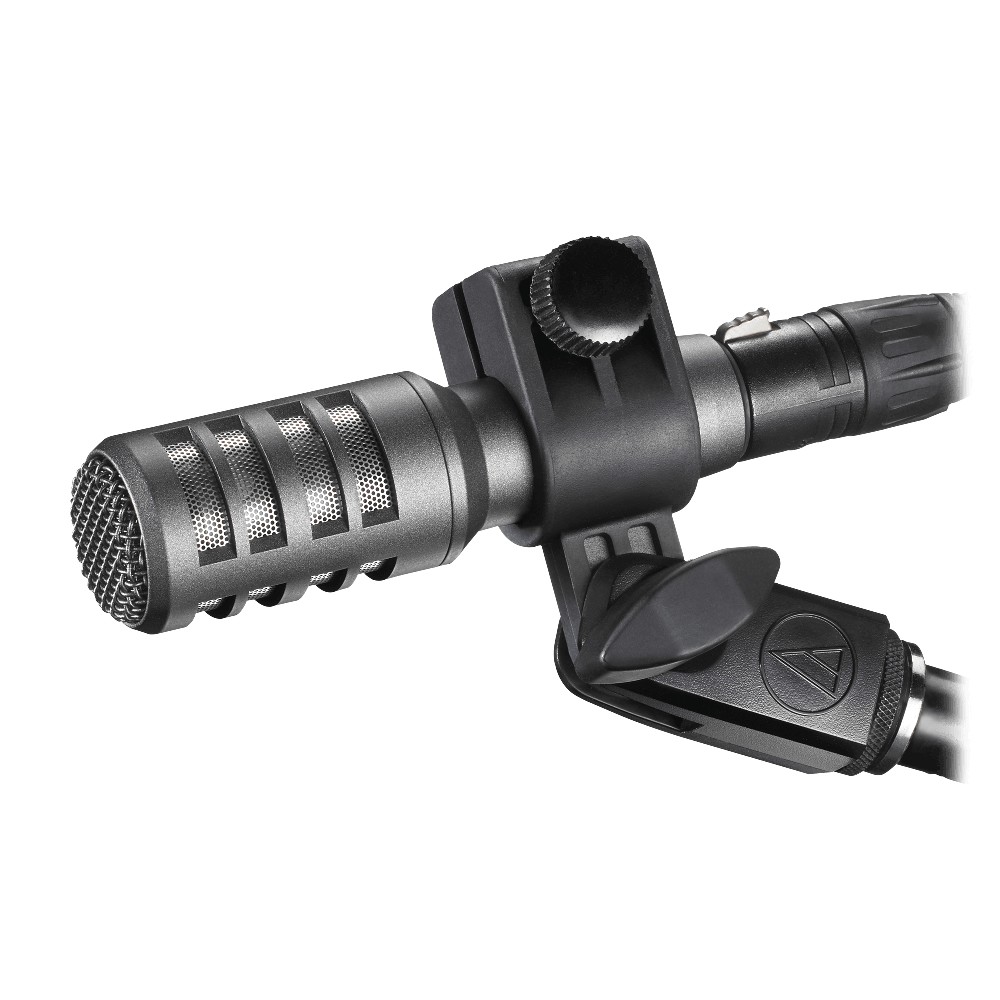

- AT8471 Isolation Stand Clamp
- 5/8"-27 to 3/8"-16 Threaded Adapter

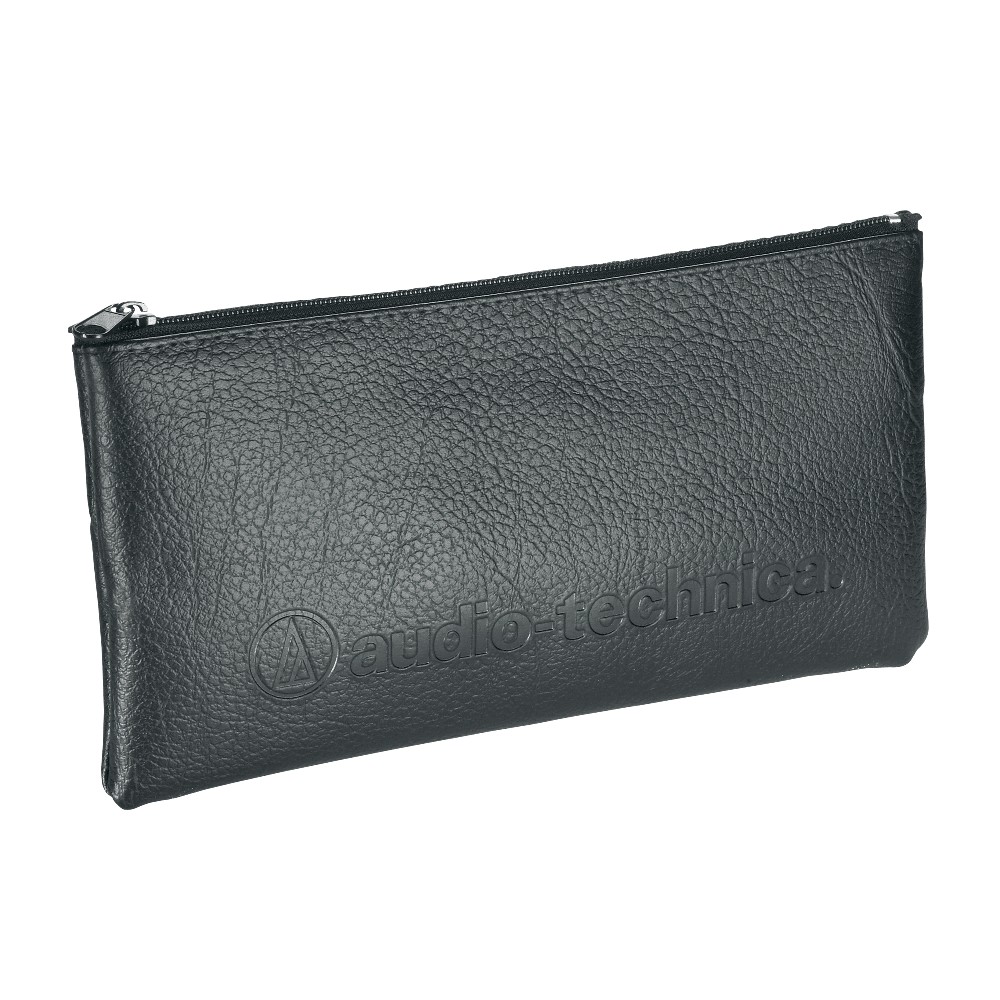

- Protective Pouch
Technical Specifications
Microphones |
Element |
Dynamic |
Polar Pattern |
Cardioid |
Frequency Response |
60 – 20,000 Hz |
Open Circuit Sensitivity |
-57 dB (1.4 mV) re 1V at Pa |
Weight |
138 g (4.9 oz) |
Dimensions |
95.6 mm (3.8") long, 28.0 mm (1.1") maximum diameter |
Output Connector |
Integral 3-pin XLRM-type |
Audio-Technica Case Style |
S4 |
What's Included
- Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone
- Audio-Technica 8471 Isolation Clamp
- 5/8"-27 to 3/8"-16 Threaded Adapter
- Soft Protective Pouch
