Product Description
FIIO’s all-new QX series represents a higher-end tier than the KA series in the USB DAC category, prioritizing audio quality while delivering premium performance and versatile adaptability.
The QX13 marks the inaugural masterpiece of this series, incorporating over a decade of FIIO’s DAC/amp technological expertise. By integrating the amplification prowess of the Q-series with attachable/magnetic design features, it establishes itself as a high-specification HiFi USB DAC with a comprehensive ecosystem.

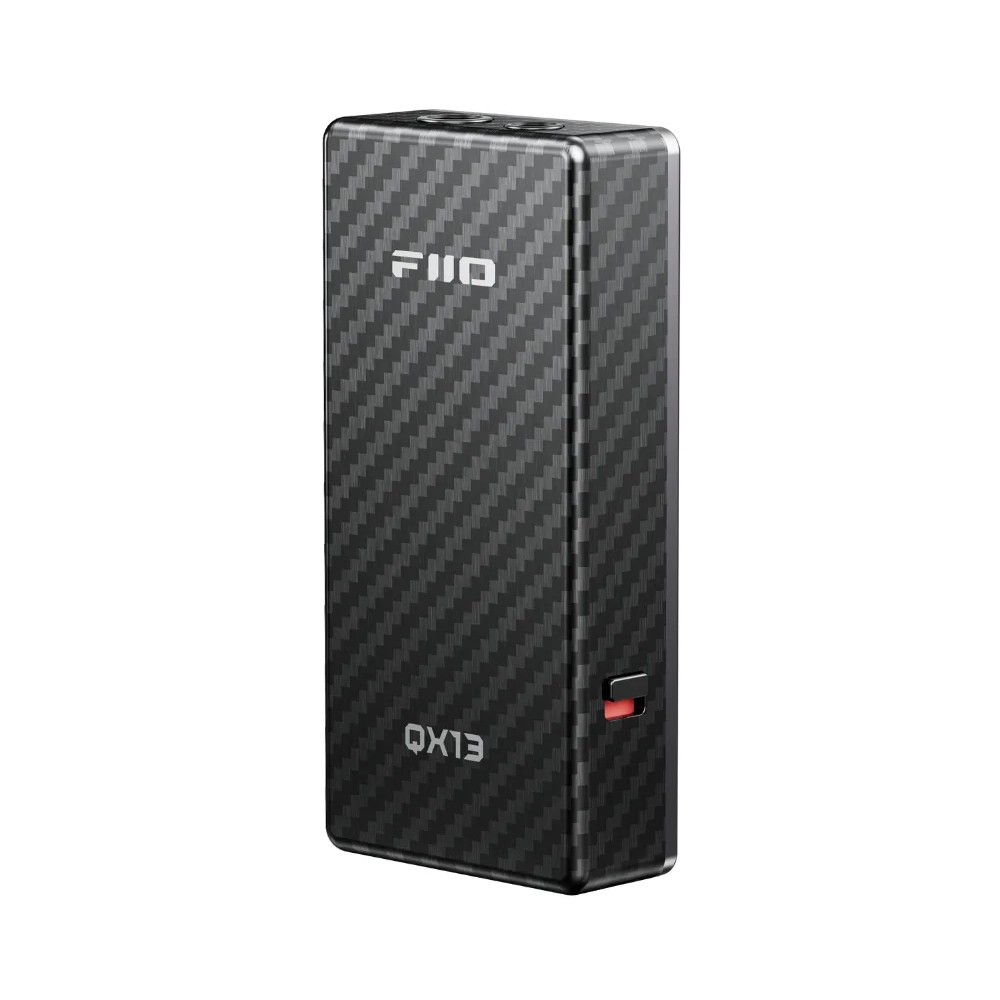

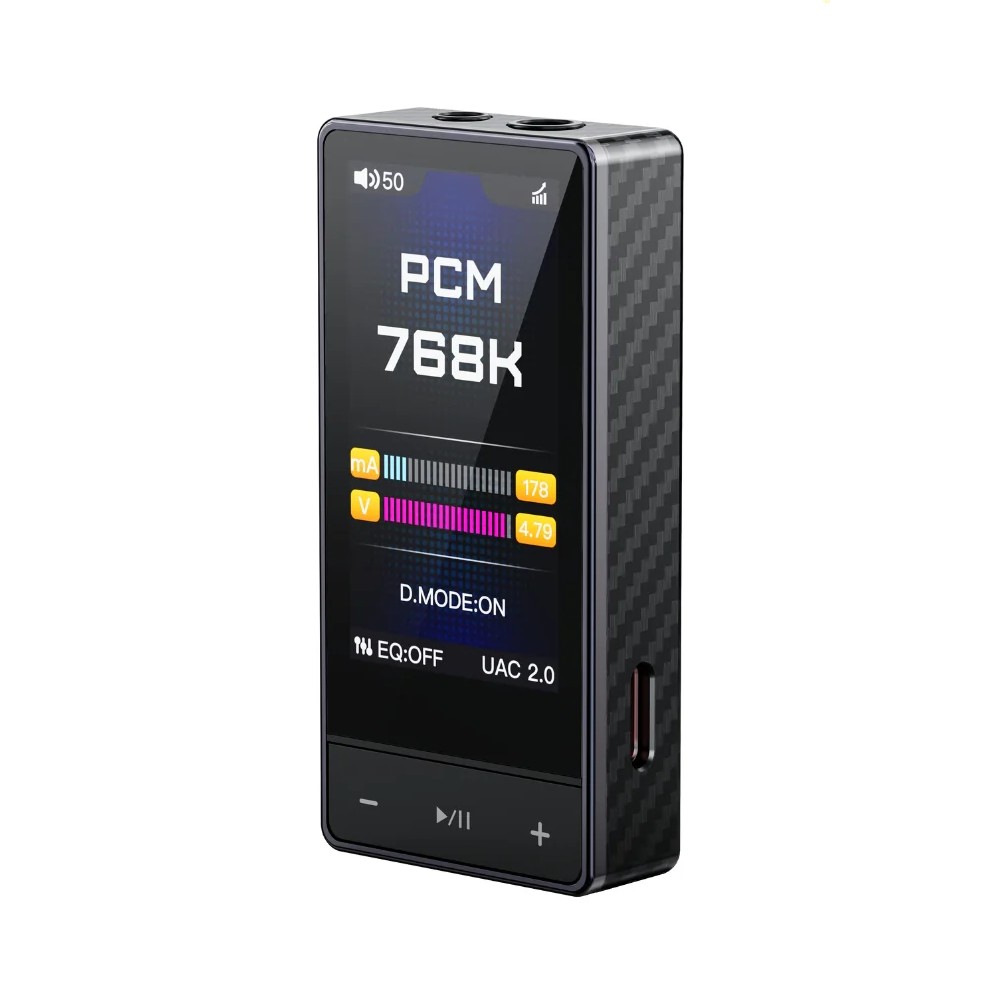

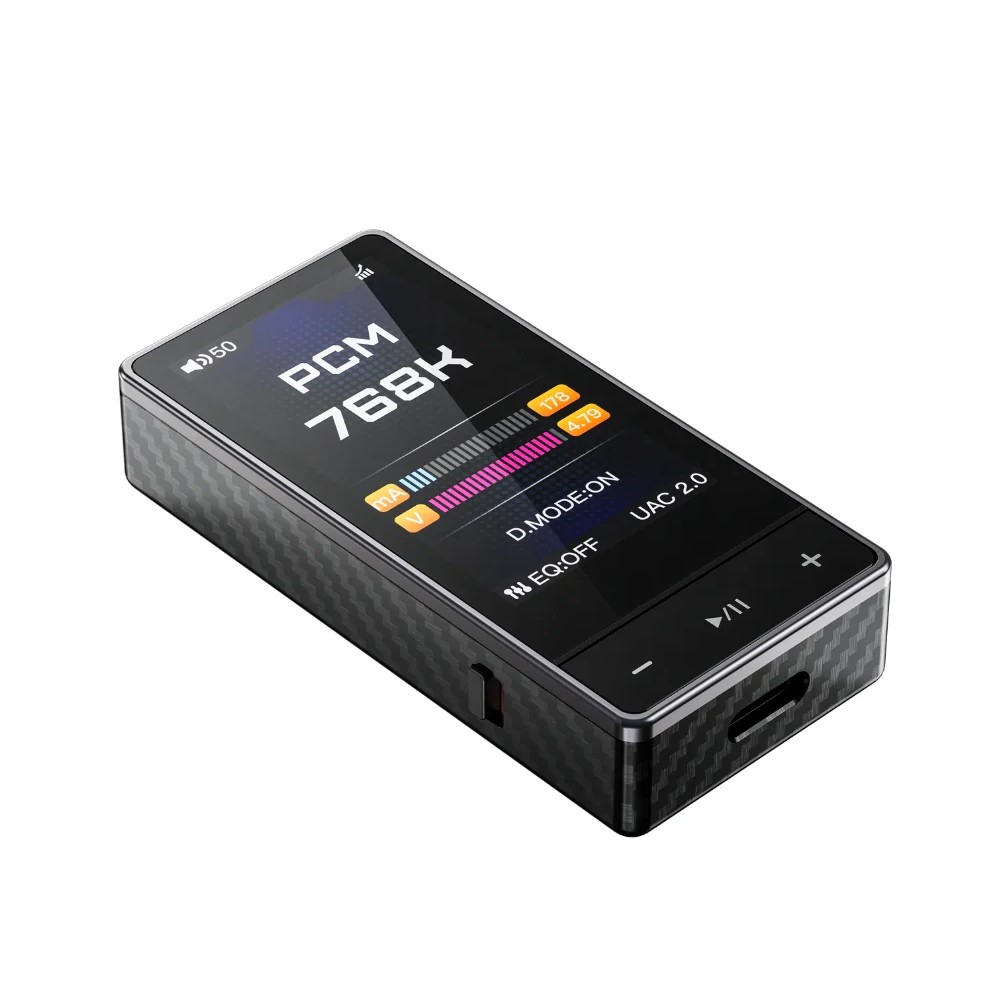

Carbon Fiber Body, Extra Large 1.99-Inch Display
The QX13 is made with up to 21 layers of stacked carbon fiber for a lightweight yet durable build. The extra-large 1.99-inch display, coupled with multiple sets of UI themes, makes it higher-end and delicate, let alone the interactions and features surpassing comparable products.
Desktop-Grade DAC, ESS ES9027PRO
The QX13 applies the flagship ESS SABRE PRO ES9027PRO. The chip features a fully differential audio architecture design with 8 channels set up in parallel, and is paired with a pair of ultra-low-noise ES9312 regulators for precise output matching on each audio channel. Audio signals are accurately restored thanks to this pair of chips’ optimized power efficiency and effectiveness in reducing clock jitter.
6 High-End TI Op-Amps, Powerful and Stable Output with High Efficiency
The QX13 uses four wafer-level precision-integrated INA1620 chips, with a specially designed internal layout to significantly reduce crosstalk – for no interference between channels even under extreme conditions. Additionally, two low-noise, low-distortion OPA1692 chips are employed to ensure excellent dynamics under various load conditions.

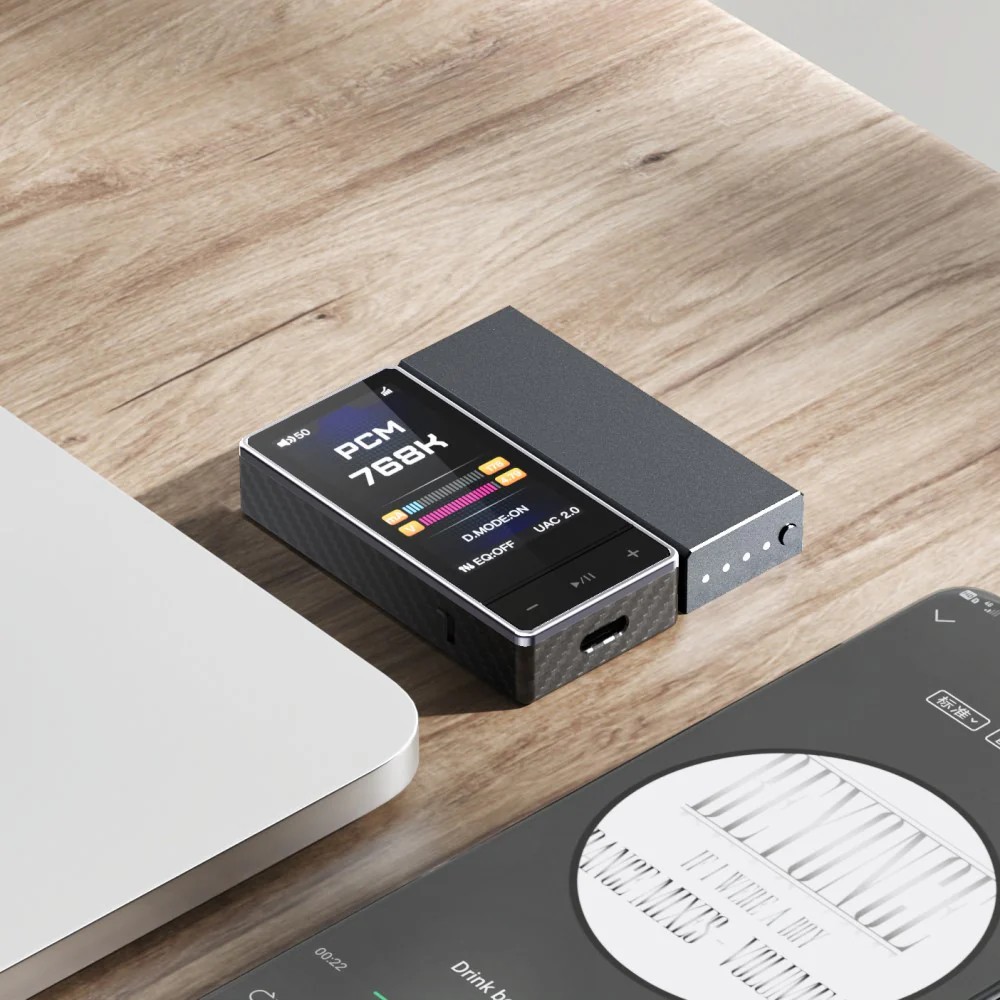

All-New Magnetic Ecosystem, Relive a Portable Desktop Experience
The QX13 comes standard with a magnetic leather case, compatible with the Estick power bank for lightweight portability with powerhouse performance. Opt for the bundled magnetic leather case (sold separately) to combine both devices - enabling charging configurations that power the Estick while creating your personalized mini desktop stack, ensuring uninterrupted musical enjoyment.
Key Features
- 900mW+900mW Desktop-LEvel Power
- ESS 8-Channel DAC ES9027PRO
- 6 TI High-Precision Op-Amps
- XMOS 16-Core XU316
- 10-Band High-Precision PEQ
- Fully Carbon Fiber Body
- 1.99-inch Color Display
- Magnetic Protective Leather Case Included
Technical Specifications
- Weight: 33.7 g (carbon fiber) / 39.2 g (aluminum alloy)
- Dimensions: 64.2 × 30.7 × 13 mm
- USB Chip: XMOS XU316
- DAC: ES9027SPRO
- Op-Amp: OPA1692 ×2
- Headphone Amplifier: TI INA1620 ×4
- Sampling Rate Support: 768 kHz / 32-bit (asynchronous), DSD512 (Native), MQA full decoding
- USB DAC Driver-Free Mode: Supported
- Display: 1.99-inch IPS, Corning 3rd-gen high-strength glass
- Headphone Outputs: Single-ended 3.5 mm, Balanced 4.4 mm
- Output Power:
- 310 mW + 310 mW (32Ω, THD+N <1%, SE, desktop mode)
- 900 mW + 900 mW (32Ω, THD+N <1%, BAL, desktop mode)
- 250 mW + 250 mW (32Ω, THD+N <1%, SE, non-desktop mode)
- 605 mW + 605 mW (32Ω, THD+N <1%, BAL, non-desktop mode)
- 40 mW + 40 mW (300Ω, THD+N <1%, SE, desktop mode)
- 125 mW + 125 mW (300Ω, THD+N <1%, BAL, desktop mode)
- SNR: ≥124 dB (A-weighted)
- Noise Floor: PO < 2 µV (A-weighted); BAL < 3.4 µV (A-weighted)
- THD+N: <0.0004% (1 kHz / –2 dB @32Ω)
What's Included
- 1 x FiiO QX13
- 1 x Leather Case
- 1 x Type-C to Type-C Data Cable
- 2 x Type-C Silicone Plug (Pre-installed)
- 1 x Screen Protector Film
- 1 x Ring-shaped Magnetic Conductor
- 1 x Quick User Guide
- 1 x Warranty Card
