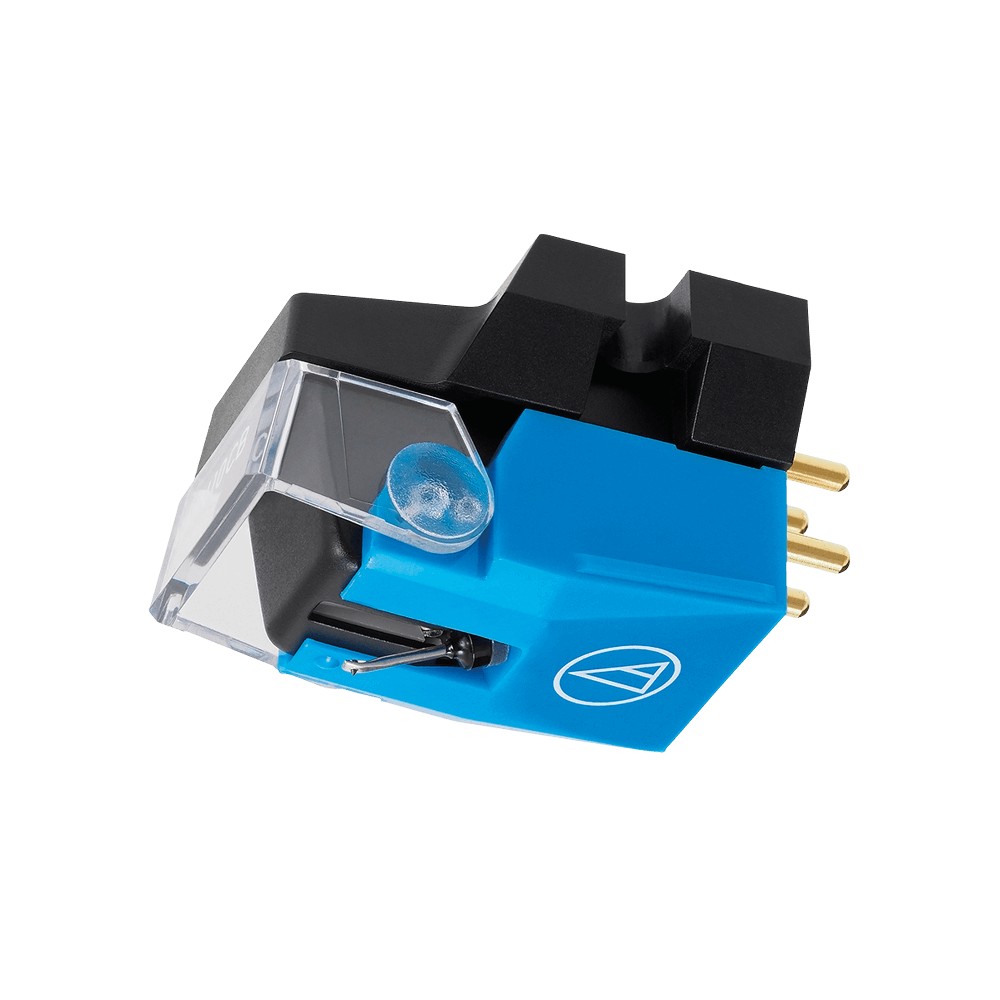

Audio-Technica VM610MONO Dual Moving Magnet Cartridge With Conical Stylus

Audio-Technica
S$179.00
Current Stock:
0
SKU:
4961310137601
Features:
Dual Moving Magnet

The VM610MONO Dual Moving Magnet Conical Stylus Cartridge from Audio-Technica is equipped with dual magnets that are internally connected to reduce record noise and obtain a focused center sound image. This cartridge is designed for mono records reproduction.

Key Features

  • VM dual magnet cartridge with 0.6 mil conical stylus
  • Aluminum cantilever
  • Paratoroidal coils improve generating efficiency
  • Mono body terminating left and right channels reduces surface noise
  • Durable low-resonance polymer housing

Technical Specifications

Cartridge & Stylus
Frequency Response 20 - 20,000Hz
Vertical Tracking Angle 23˚
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000Ω
Coil Impedance 1,400Ω (1kHz)
Output Voltage 3.0mV (1kHz, 5cm/sec.)
Stylus Shape Conical Bonded
Cantilever Aluminium Pipe
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
Mounting 1/2” centres
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
Recommended Load Capacitance 100 – 200pF
Replacement Stylus VMN10CB
Stylus Size 0.6 mil
Type VM Type
Weight 6.4g

What's Included

  • Audio-Technica VM610MONO Dual Moving Magnet Conical Stylus Cartridge
  • 4 x Cartridge Installation Screw (2 x 5mm and 2 x 10mm)
  • 2 x Washer
  • 2 x Hexagon Nut
